在Vue3專案裡使用Vue Flow套件之範例
因專案需求而研究Vue Flow套件，將基本的介紹作筆記。
首先開新Vue3專案，在終端機輸入安裝
npm add @vue-flow/core index.css
/* import the required styles */
@import '@vue-flow/core/dist/style.css';
/* import the default theme (optional) */
@import '@vue-flow/core/dist/theme-default.css';
html,
body,
#app {
margin: 0;
height: 100%;
}main.js
import { createApp } from 'vue';
import ElementPlus from 'element-plus';
import 'element-plus/dist/index.css';
import './assets/index.css';
import './assets/dragDropEx.css';
import App from './App.vue';
const app = createApp(App);
app.use(ElementPlus);

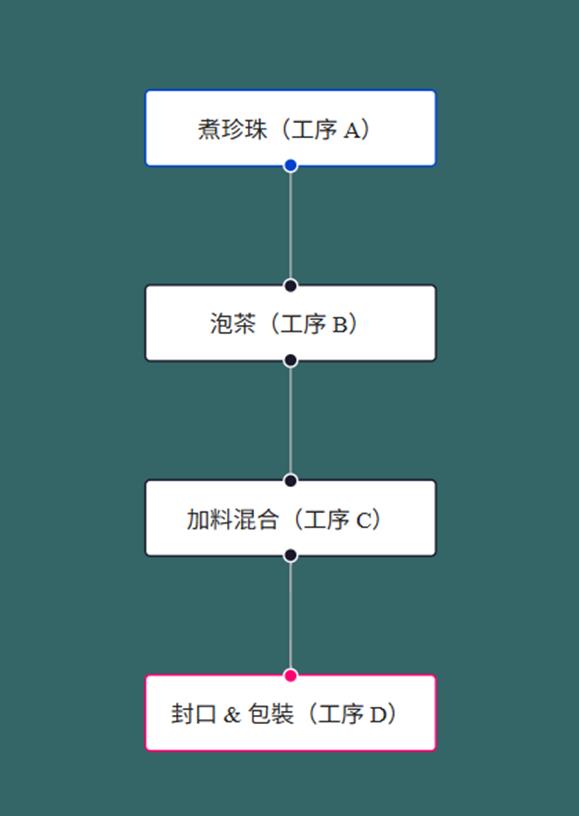

app.mount('#app');引用VueFlow與資料屬性之範例1：
•nodes：節點
•edges：邊，也叫連接線
<script setup>
import { ref } from 'vue'
import { VueFlow } from '@vue-flow/core'
const nodes = ref([
{
id: '1',
type: 'input',
position: { x: 100, y: 100 },
data: { label: '煮珍珠（工序 A）' },
},
{
id: '2',
position: { x: 100, y: 200 },
data: { label: '泡茶（工序 B）' },
},
{
id: '3',
position: { x: 100, y: 300 },
data: { label: '加料混合（工序 C）' },
},
{
id: '4',
type: 'output',
position: { x: 100, y: 400 },
data: { label: '封口 & 包裝（工序 D）' },
},
])
const edges = ref([
{
id: 'e1->2',
source: '1',
target: '2',
type: 'straight'
},
{
id: 'e2->3',
source: '2',
target: '3',
type: 'straight'
},
{
id: 'e3->4',
source: '3',
target: '4',
}
])
</script>
<template>
<VueFlow :nodes="nodes" :edges="edges">
</VueFlow>
</template>
<style>
</style>

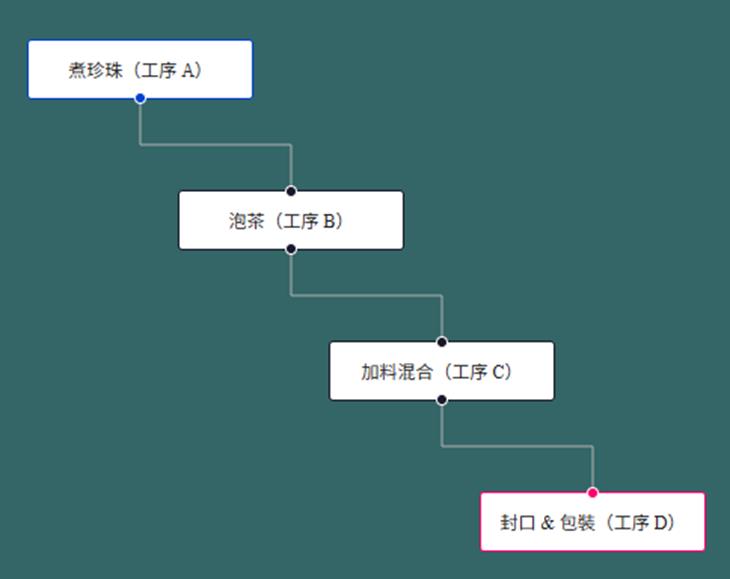

折線範例：edges 裡 type: 'step'
<script setup>
import { ref } from 'vue'
import { VueFlow } from '@vue-flow/core'
const nodes = ref([
{
id: '1',
type: 'input',
position: { x: 100, y: 100 },
data: { label: '煮珍珠（工序 A）' },
},
{
id: '2',
position: { x: 200, y: 200 },
data: { label: '泡茶（工序 B）' },
},
{
id: '3',
position: { x: 300, y: 300 },
data: { label: '加料混合（工序 C）' },
},
{
id: '4',
type: 'output',
position: { x: 400, y: 400 },
data: { label: '封口 & 包裝（工序 D）' },
},
])
const edges = ref([
{
id: 'e1->2',
source: '1',
target: '2',
type: 'step'
},
{
id: 'e2->3',
source: '2',
target: '3',
type: 'step'
},
{
id: 'e3->4',
source: '3',
target: '4',
type: 'step'
}
])
</script>
<template>
<VueFlow :nodes="nodes" :edges="edges">
</VueFlow>
</template>
<style></style>
串連連接線範例:
const edges = ref([
])
const { onConnect, addEdges } = useVueFlow()
onConnect(({ source, target, sourceHandle, targetHandle }) => {
console.log('source', source)
console.log('target', target)
console.log('sourceHandle', sourceHandle)
console.log('targetHandle', targetHandle)
addEdges({ source, target, sourceHandle, targetHandle })
const timeStr = `${new Date().getMinutes()}-${new Date().getSeconds()}`
edges.value.push({
id: timeStr,
source: source,
target: target,
})

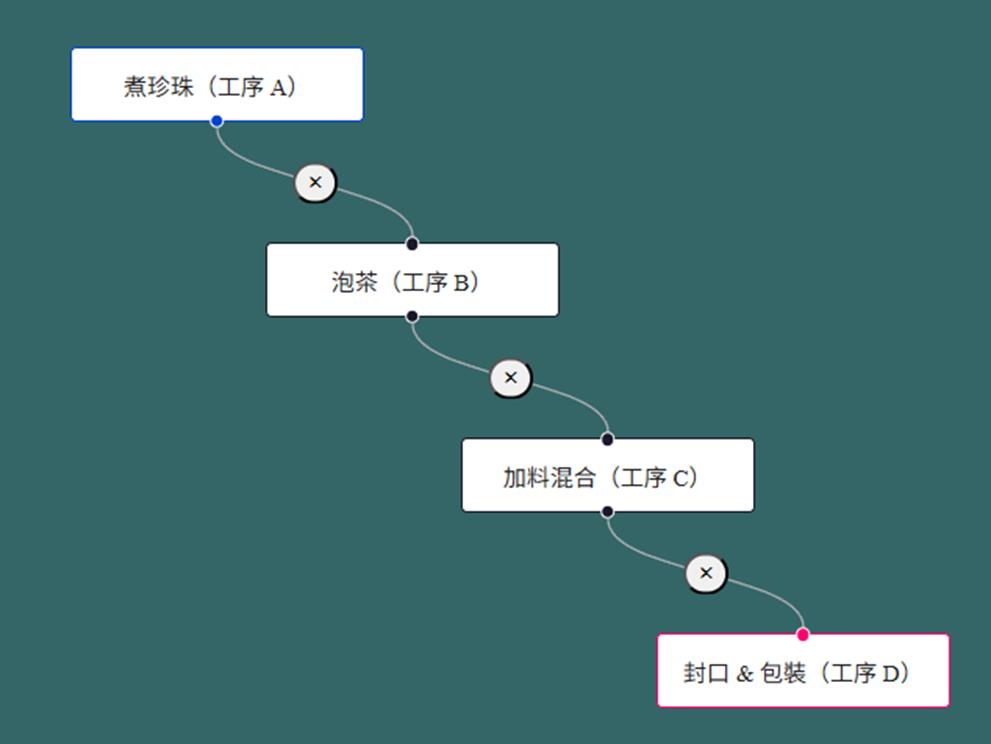

})客製化連接線(刪除圖示)範例:
CustomEdge.vue
<script setup>
import { computed } from 'vue'
import { BaseEdge, EdgeLabelRenderer, getBezierPath, useVueFlow } from '@vue-flow/core'
const props = defineProps({
id: {
type: String,
required: true,
},
sourceX: {
type: Number,
required: true,
},
sourceY: {
type: Number,
required: true,
},
targetX: {
type: Number,
required: true,
},
targetY: {
type: Number,
required: true,
},
sourcePosition: {
type: String,
required: true,
},
targetPosition: {
type: String,
required: true,
},
data: {
type: Object,
required: false,
},
markerEnd: {
type: String,
required: false,
},
style: {
type: Object,
required: false,
},
deleteFunction:Function
})
// const { removeEdges } = useVueFlow()
const path = computed(() => getBezierPath(props))
</script>
<script>
export default {
inheritAttrs: false,
}
</script>
<template>
<BaseEdge :path="path[0]" />
<EdgeLabelRenderer>
<div
:style="{
pointerEvents: 'all',
position: 'absolute',
transform: `translate(-50%, -50%) translate(${path[1]}px,${path[2]}px)`,
}"
class="nodrag nopan"
>
<button class="edgebutton" @click="deleteFunction(id)">×</button>
</div>
</EdgeLabelRenderer>
</template>
<style>
.edgebutton {
border-radius: 999px;
cursor: pointer;
}
.edgebutton:hover {
box-shadow: 0 0 0 2px pink, 0 0 0 4px #f05f75;
}
</style>
Ex5.vue
<script setup>
import { ref } from 'vue'
import { VueFlow, useVueFlow } from '@vue-flow/core'
import CustomEdge from "../components/CustomEdge.vue";
const nodes = ref([
{
id: '1',
type: 'input',
position: { x: 100, y: 100 },
data: { label: '煮珍珠（工序 A）' },
},
{
id: '2',
position: { x: 200, y: 200 },
data: { label: '泡茶（工序 B）' },
},
{
id: '3',
position: { x: 300, y: 300 },
data: { label: '加料混合（工序 C）' },
},
{
id: '4',
type: 'output',
position: { x: 400, y: 400 },
data: { label: '封口 & 包裝（工序 D）' },
},
])
const edges = ref([
{
id: 'e1->2',
source: '1',
target: '2',
type: "custom"
},
{
id: 'e2->3',
source: '2',
target: '3',
type: "custom"
},
{
id: 'e3->4',
source: '3',
target: '4',
type: "custom"
}
])
const { onConnect, addEdges, removeEdges } = useVueFlow()
onConnect(({ source, target, sourceHandle, targetHandle }) => {
console.log('source', source)
console.log('target', target)
console.log('sourceHandle', sourceHandle)
console.log('targetHandle', targetHandle)
// addEdges({ source, target, sourceHandle, targetHandle })
const timeStr = `${new Date().getMinutes()}-${new Date().getSeconds()}`
addEdges([
{
id: timeStr, // 可選，若未指定會自動生成
source: source,
target: target,
sourceHandle: sourceHandle,
targetHandle: targetHandle,
type: 'custom', // 指定自訂類型
},
])
edges.value.push({
id: timeStr,
source: source,
target: target,
type: "custom"
})
})
/**
* 刪除邊
* @param id
*/
function deleteEdge(id) {
console.log('deleteEdge id', id)
removeEdges(id)
edges.value = edges.value.filter(x => x.id != id)
}
</script>
<template>
<VueFlow :nodes="nodes" :edges="edges">
<template #edge-custom="edgeProps">
<CustomEdge v-bind="edgeProps" :deleteFunction="deleteEdge" />
</template>
</VueFlow>
</template>
<style></style>
連接線動畫範例:edges內animated: true
const edges = ref([
{
id: 'e1->2',
source: '1',
target: '2',
animated: true
},
{
id: 'e2->3',
source: '2',
target: '3',
animated: true
},
{
id: 'e3->4',
source: '3',
target: '4',
animated: true
}
])以上是摘錄部份sourcecode的範例之筆記。
